Objective: Replicate the OpenDuck Mini project and control it using the RDK X5 development board.

OpenDuck Mini is an open-source robotics project aimed at creating a miniature, low-cost replica of Disney’s BDX Droid. The project was initiated and is maintained by developer Antoine Pirrone (apirrone).

Table of Contents：

▪️ Project Research

▪️ International Projects

▪️ Domestic Projects

▪️ OpenDuck Development Workflow

▪️ OpenDuck Repository Overview

▪️ Raspberry Pi Zero 2W Deployment Process

▪️ RDK X5 Deployment Process

▪️ Frequently Asked Questions (FAQ)

▪️ Reinforcement Learning

I. Project Research

1.1 International Projects

Focus on algorithm implementation and community ecosystem.

1.1.1 🇺🇸 OpenDuck Mini

1.1.2 🇺🇸 K-Scale Labs (Stompy)

1.1.3 🇺🇸 Berkeley Humanoid Lite

1.1.4 🇫🇷 Poppy Project & 🇰🇷 Robotis OP3

1.2 Domestic Projects

Domestic projects are generally more aggressive in brushless motor (BLDC/FOC) applications with stronger hardware performance.

1.2.1 🇨🇳 Kit-Miao (Damiao Technology)

1.2.2 🇨🇳 Unitree Qmini (Yushu)

1.2.3 🇨🇳 AlexBot (Alexhuge1)

1.2.4 🇨🇳 HighTorque & FFTAI

II. OpenDuck Development Workflow

flowchart LR
    A[🛠️ Modeling & Simulation] --> B[🏃 Motion Generation]
    B --> C[🧠 Reinforcement Learning]
    C --> D[🖨️ Hardware Construction]
    D --> E[🚀 Runtime Deployment]

2.1 Phase 1: Model and Simulation Preparation

Reference: prepare_robot.md

2.2 Phase 2: Motion Generation

Repository: reference_motion_generator

▪️ Input: Motion generator (polynomial fitting)

▪️ Output: Reference motion pkl

2.3 Phase 3: Reinforcement Learning

Repository: playground

▪️ Input: Reference motion pkl file + verified XML scene file

▪️ Core Task: Sim2Real training (train and verify robot control strategy in virtual environment)

2.4 Phase 4: Hardware Construction

Repository: Main repository

2.5 Phase 5: Runtime Deployment

Repository: Runtime

1. System environment installation

2. Servo + IMU initialization

3. Controller Bluetooth connection

4. Foot sensor debugging

5. Sim2Real deployment

III. OpenDuck Repository Overview

IV. Raspberry Pi Zero 2W Deployment Process

Although steps like flashing images, setting WiFi passwords, and enabling I2C have detailed tutorials online, this article provides a complete deployment process for reference due to encountering WiFi connection issues during actual deployment and some differences from official documentation.

4.1 Flash Image

Follow the standard image flashing process, note to select the headless version (lite version), and configure WiFi account and password in advance.

⚠️ Recommended to use the same image version as the tutorial: 2025-12-04-raspios-trixie-arm64-lite.img.xz

4.2 SD Card Expansion

After image flashing is complete, the actual available space is usually only a small portion of the SD card’s total capacity, requiring filesystem expansion.

# 32GB SD card may only show 7GB after flashing
sudo raspi-config -> Advanced options -> Expand Filesystem

# Verify
df -h

4.3 APT Source Configuration

# Backup
sudo cp /etc/apt/sources.list.d/debian.sources /etc/apt/sources.list.d/debian.sources.bak
sudo cp /etc/apt/sources.list.d/raspi.sources /etc/apt/sources.list.d/raspi.sources.bak

Modify Debian main source (/etc/apt/sources.list.d/debian.sources):

Types: deb
URIs: https://mirrors.tuna.tsinghua.edu.cn/debian/
Suites: trixie trixie-updates trixie-backports
Components: main contrib non-free non-free-firmware
Signed-By: /usr/share/keyrings/debian-archive-keyring.gpg

Types: deb
URIs: https://mirrors.tuna.tsinghua.edu.cn/debian-security/
Suites: trixie-security
Components: main contrib non-free non-free-firmware
Signed-By: /usr/share/keyrings/debian-archive-keyring.gpg

Modify Raspberry Pi source (/etc/apt/sources.list.d/raspi.sources):

Types: deb
URIs: https://mirrors.tuna.tsinghua.edu.cn/raspberrypi/
Suites: trixie
Components: main
Signed-By: /usr/share/keyrings/raspberrypi-archive-keyring.gpg

# Update
sudo apt update
sudo apt upgrade -y

4.4 Reduce FTDI USB Serial Latency

# Create rule file
sudo tee /etc/udev/rules.d/99-usb-serial.rules >/dev/null <<'EOF'
SUBSYSTEM=="usb-serial", DRIVER=="ftdi_sio", ATTR{latency_timer}="1"
EOF

# Apply
sudo udevadm control --reload-rules
sudo udevadm trigger

💡 This rule only applies to FTDI drivers and does not affect CH340/CP210x.

4.5 Enable I2C

sudo raspi-config -> Interface Options -> I2C

4.6 Install System Packages

sudo apt install -y git unzip i2c-tools joystick python3-pip python3-venv

4.7 Configure pip Source

pip config set global.index-url https://mirrors.aliyun.com/pypi/simple
pip config set global.trusted-host mirrors.aliyun.com

# Verify
pip config list

4.8 Install Miniconda

# Create directory
mkdir download && cd download

# Download Miniconda (aarch64)
# https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-aarch64.sh

chmod +x Miniconda3-latest-Linux-aarch64.sh
./Miniconda3-latest-Linux-aarch64.sh
# Follow prompts: Enter -> yes -> Enter -> yes

source ~/.bashrc

Configure Conda Mirror:

# Clean old configuration
conda config --remove-key channels 2>/dev/null || true
conda config --remove-key default_channels 2>/dev/null || true

# Set Tsinghua source
conda config --append default_channels https://mirrors.tuna.tsinghua.edu.cn/anaconda/pkgs/main
conda config --append default_channels https://mirrors.tuna.tsinghua.edu.cn/anaconda/pkgs/r
conda config --set custom_channels.conda-forge https://mirrors.tuna.tsinghua.edu.cn/anaconda/cloud

# Set channels
conda config --add channels conda-forge
conda config --add channels defaults
conda config --set show_channel_urls yes

Create Environment:

conda create -n duck310 python=3.10 -y --repodata-fn current_repodata.json -v
conda activate duck310

4.9 Configure pip Acceleration and Install uv

⚠️ Must be executed in the (duck310) environment

pip config set global.index-url https://mirrors.aliyun.com/pypi/simple
pip config set global.trusted-host mirrors.aliyun.com

pip install -U uv

4.10 Install OpenDuckMini Dependencies

uv pip install -U pip setuptools wheel

uv pip install rustypot==0.1.0 onnxruntime==1.18.1 numpy
    adafruit-circuitpython-bno055==5.4.13 scipy==1.15.1
    pygame==2.6.0 openai==1.70.0 RPi.GPIO

4.11 Configure Proxy (Optional)

git config --global http.proxy http://your_proxy_address:your_proxy_port
git config --global https.proxy https://your_proxy_address:your_proxy_port

Example configuration:

git config --global http.proxy http://192.168.1.196:6551
git config --global https.proxy https://192.168.1.196:6551

4.12 Install pypot and Open_Duck_Mini_Runtime

mkdir ~/project && cd ~/project

Install Open_Duck_Mini_Runtime:

# Download: https://github.com/apirrone/Open_Duck_Mini_Runtime/tree/v2
unzip Open_Duck_Mini_Runtime-2.zip
cd Open_Duck_Mini_Runtime-2
uv pip install -e .

Install pypot:

# Download: https://github.com/apirrone/pypot/tree/support-feetech-sts3215
unzip pypot-support-feetech-sts3215.zip
cd pypot-support-feetech-sts3215
uv pip install .

4.13 Calibrate IMU

sudo usermod -aG i2c $USER
i2cdetect -y 1

cd ~/project/Open_Duck_Mini_Runtime-2/scripts/
python calibrate_imu.py

▪️ Rotate and move the robot in different directions until the terminal outputs [3,3,3,3] and displays Calibrated = True

▪️ Calibration results will be saved in the imu_calib_data.pkl file

cp imu_calib_data.pkl ~/project/Open_Duck_Mini_Runtime-2/mini_bdx_runtime/mini_bdx_runtime/

4.14 Adjust Servo Offsets

cd ~/project/Open_Duck_Mini_Runtime-2/scripts
python find_soft_offsets.py

Operation Steps:

1. Use a cardboard box or stand to elevate the robot from the bottom, ensuring both feet are suspended

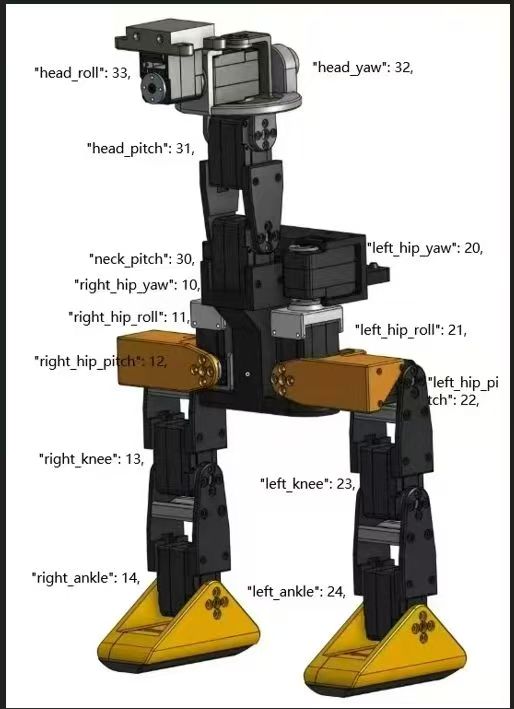

2. Refer to the servo position diagram for calibration:

3. Put the robot in an upright position with all motors in torque-locked state

4. Unlock motors one by one, manually adjust to the correct position, then re-lock

Final State Check:

✅ Chassis (abdomen) direction remains horizontal or slightly upward

✅ Left and right legs, left and right feet are symmetrical, should completely overlap when viewed from the side

✅ When placed on a table, both feet’s micro switches should trigger simultaneously

✅ Head direction remains horizontal or slightly upward

4.15 Modify Configuration File

cd ~/project/Open_Duck_Mini_Runtime-2/
cp example_config.json ~/duck_config.json

Fill in the servo offsets in the ~/duck_config.json configuration file and add the following settings:

{
  "imu_upside_down": true
}

⚠️ Important: If the imu_upside_down parameter is not set, the robot will exhibit abnormal oscillations during walking and cannot maintain balance correctly.

4.16 Initial Bent Leg Posture

cd ~/project/Open_Duck_Mini_Runtime-2/scripts
python turn_on.py

▪️ Under normal assembly conditions, servo position should be 0 when fully upright

▪️ After startup, the robot should be in a bent leg posture with servo torque locked

If you encounter problems, please refer to Frequently Asked Questions (FAQ)

4.17 Test Walking

cd ~/project/Open_Duck_Mini_Runtime-2/scripts

python v2_rl_walk_mujoco.py
    --duck_config_path ~/duck_config.json
    --onnx_model_path ~/BEST_WALK_ONNX_2.onnx

💡 The BEST_WALK_ONNX_2.onnx model file needs to be downloaded from the official repository and placed in the home directory.

The robot will first enter the initial posture, then begin movement. Actual operation requires controller control. If you don’t have a Bluetooth controller, you can modify the code to default to forward movement.

V. RDK X5 Deployment Process

The RDK kit provides Ubuntu 22.04 system images (desktop/server versions).
The following only lists steps different from Raspberry Pi, please refer to the above for identical steps.

5.1 System Flashing

Download Image: RDK X5 Image Download

Recommended version: rdk-x5-ubuntu22-preinstalled-desktop-3.4.1-arm64.img.xz

NAND Firmware Flashing (optional, for version consistency):

Download: NAND Firmware Download

Recommended version: product_20251111.zip

5.2 Install System Packages

👉 Same as Raspberry Pi Step 6

5.3 Configure pip Source

👉 Same as Raspberry Pi Step 7

5.4 Create venv (⚠️ Different from Raspberry Pi)

The official hobot.GPIO, hobot_dnn and other packages from Digua Robotics are precompiled for the RDK system Python environment.
Compatibility issues may occur in Conda environments, recommended to use system Python + venv virtual environment.

python3 -m venv --system-site-packages ~/duck_env
source ~/duck_env/bin/activate

# Verify GPIO module
python3 -c "import Hobot.GPIO; print('OK')"

5.5 Configure pip Acceleration and Install uv

⚠️ Must be executed in the (duck_env) environment

pip config set global.index-url https://mirrors.aliyun.com/pypi/simple
pip config set global.trusted-host mirrors.aliyun.com

python3 -m pip install -U uv

5.6 Install Dependencies (⚠️ Different from Raspberry Pi)

python3 -m uv pip install -U pip setuptools wheel

# Note: RDK X5 uses smbus2 instead of RPi.GPIO
python3 -m uv pip install rustypot==0.1.0 onnxruntime==1.18.1 numpy
    adafruit-circuitpython-bno055==5.4.13 scipy==1.15.1
    pygame==2.6.0 openai==1.70.0 smbus2

5.7 Configure Proxy (Optional)

👉 Same as Raspberry Pi Step 11

5.8 Install pypot and Runtime

mkdir ~/project && cd ~/project

Install Open_Duck_Mini_Runtime (RDK X5 version):

unzip Open_Duck_Mini_Runtime-2_RDK_X5.zip
cd Open_Duck_Mini_Runtime-2_RDK_X5
uv pip install -e .

Install pypot:

# Download: https://github.com/apirrone/pypot/tree/support-feetech-sts3215
unzip pypot-support-feetech-sts3215.zip
cd pypot-support-feetech-sts3215
uv pip install .

5.9 Calibrate IMU

👉 Same as Raspberry Pi Step 13 (change path to Open_Duck_Mini_Runtime-2_RDK_X5)

5.10 Adjust Servo Offsets

👉 Same as Raspberry Pi Step 14 (change path to Open_Duck_Mini_Runtime-2_RDK_X5)

5.11 Modify Configuration File

👉 Same as Raspberry Pi Step 15 (change path to Open_Duck_Mini_Runtime-2_RDK_X5)

5.12 Initial Bent Leg Posture

👉 Same as Raspberry Pi Step 16 (change path to Open_Duck_Mini_Runtime-2_RDK_X5)

If you encounter problems, please refer to Frequently Asked Questions (FAQ)

5.13 Test Walking

cd ~/project/Open_Duck_Mini_Runtime-2_RDK_X5/scripts

python v2_rl_walk_mujoco.py
    --duck_config_path ~/duck_config.json
    --onnx_model_path ~/BEST_WALK_ONNX_2.onnx

This article has added support for Logitech F710 controller.

VI. Frequently Asked Questions (FAQ)

6.1 Q1: When running find_soft_offsets.py, gravity shows horizontal posture

Problem Cause: Servo 22 or 12 is not installed in horizontal orientation, causing servo position to be approximately -1.57 radians

Solution:

1. Loosen the 4 fixing screws on the servo main disk to allow the entire leg to be freely adjustable

2. Create the following script to return the servo to center position:

cd ~/project/Open_Duck_Mini_Runtime-2/scripts  # or corresponding RDK X5 path
nano set_servo_mid.py

from mini_bdx_runtime.rustypot_position_hwi import HWI
from mini_bdx_runtime.duck_config import DuckConfig
import argparse
import time
import traceback

def zero_motor(hwi, joint_id, tol=0.02, timeout=5.0):
    """Move motor to 0 rad and wait until reached."""
    print(f"Zeroing motor ID {joint_id} to 0 rad")

    try:
        current_pos = hwi.io.read_present_position([joint_id])[0]
        print(f"Current position: {current_pos:.3f} rad")

        hwi.io.write_goal_position([joint_id], [0.0])

        start_time = time.time()
        while True:
            pos = hwi.io.read_present_position([joint_id])[0]
            err = abs(pos)

            print(f"  pos={pos:.3f} rad, err={err:.3f}")

            if err < tol:
                print("✓ Zero position reached")
                return True

            if time.time() - start_time > timeout:
                print("✗ Timeout while zeroing motor")
                return False

            time.sleep(0.05)

    except Exception as e:
        print(f"✗ Error zeroing motor ID {joint_id}: {e}")
        print(traceback.format_exc())
        return False

def main():
    parser = argparse.ArgumentParser()
    parser.add_argument("--id", type=int, required=True, help="Motor ID to zero")
    args = parser.parse_args()

    print("Initializing hardware interface...")
    try:
        duck_config = DuckConfig()
        hwi = HWI(duck_config=duck_config)
        print("Successfully connected to hardware")
    except Exception as e:
        print(f"Error initializing HWI: {e}")
        print(traceback.format_exc())
        return

    zero_motor(hwi, args.id)

    try:
        hwi.io.disable_torque([args.id])
        print(f"Torque disabled for motor ID {args.id}")
    except Exception:
        pass

if __name__ == "__main__":
    main()

3. Run the script, specify the servo ID to calibrate and return to center position:

python set_servo_mid.py --id 12

Expected Output:

Initializing hardware interface...
Successfully connected to hardware
Zeroing motor ID 12 to 0 rad
Current position: -3.086 rad
  pos=-3.086 rad, err=3.086
  ...
✗ Timeout while zeroing motor
Torque disabled for motor ID 12

4. The servo disk will automatically rotate. After rotation is complete, fix the four screws in the upright posture.

📝 Document Update Log

▪️ As of the writing of this article, multiple tutorials for OpenDuck Mini have Python environment configuration issues

▪️ This tutorial, when used with the specified image version, has been verified in practice and can avoid common environment issues

VII. Reinforcement Learning

This section introduces how to use the OpenDuck project for reinforcement learning training, including reference motion generation, data processing, and model training.

7.1 Generate Reference Motions

Repository: Open_Duck_reference_motion_generator
Purpose: Generate reference motion data for imitation learning

7.1.1 Clone Repository and Install Dependencies

cd ~/project/open_duck_mini_ws
git clone https://github.com/apirrone/Open_Duck_reference_motion_generator.git
cd Open_Duck_reference_motion_generator

# Install dependencies using uv
uv sync

7.1.2 Batch Generate Motions

Use the auto_waddle.py script to batch generate motion files with different gait parameters

uv run scripts/auto_waddle.py
    --duck open_duck_mini_v2
    --sweep
    -j8

Generation Result: Approximately 240 .json motion files will be generated in the recordings/ directory

File naming format: {number}_{x_velocity}_{y_velocity}_{turn_velocity}.json

Example: 99_0.074_-0.111_-0.074.json

▪️ X-direction velocity: 0.074 m/s (forward)

▪️ Y-direction velocity: -0.111 m/s (right)

▪️ Turn angular velocity: -0.074 rad/s (clockwise)

7.1.3 Verify Generated Motions (Optional)

# Use Meshcat for visualization
uv run open_duck_reference_motion_generator/gait_playground.py --duck open_duck_mini_v2

Then open http://127.0.0.1:7000/static/ in your browser to view the 3D model animation

7.2 Process Motion Data

Purpose: Perform polynomial fitting on motion data to compress data and smooth noise

7.2.1 Polynomial Fitting

cd ~/project/open_duck_mini_ws/Open_Duck_reference_motion_generator

uv run scripts/fit_poly.py --ref_motion recordings/

Output: The polynomial_coefficients.pkl file will be generated in the current directory, containing polynomial coefficients for all motions

💡 Purpose of Polynomial Fitting:

Significantly compress data volume (each joint only needs 5-10 coefficients to represent the complete motion trajectory)

Effectively smooth noise and jitter in raw data

Facilitate fast sampling and interpolation during reinforcement learning training

7.2.2 View Fitting Results (Optional)

uv run scripts/plot_poly_fit.py --coefficients polynomial_coefficients.pkl

The script will display fitting curve graphs for each motion one by one to verify fitting effectiveness

7.2.3 Copy to Training Directory

cp polynomial_coefficients.pkl
   ~/project/open_duck_mini_ws/Open_Duck_Playground/playground/open_duck_mini_v2/data/

7.3 Reinforcement Learning Training

Repository: Open_Duck_Playground
Purpose: Train walking strategy using PPO algorithm

7.3.1 Clone Repository and Install Dependencies

cd ~/project/open_duck_mini_ws
git clone https://github.com/apirrone/Open_Duck_Playground.git
cd Open_Duck_Playground

uv sync

7.3.2 Start Training

python3 playground/open_duck_mini_v2/runner.py
    --task flat_terrain_backlash
    --num_timesteps 300000000

Training Output:

▪️ checkpoints/ directory – Saves model checkpoints during training

▪️ ONNX.onnx file – Final exported ONNX format inference model

7.3.3 Monitor Training Progress

Run the following command in a new terminal:

cd ~/project/open_duck_mini_ws/Open_Duck_Playground
tensorboard --logdir=checkpoints/

Open http://localhost:6006 in your browser to view training curves and metrics

7.3.4 Training Parameters

7.3.5 Deploy to Real Robot

After training is complete, copy the generated ONNX.onnx model file to the robot device:

scp ONNX.onnx user@raspberry-pi:~/BEST_WALK_ONNX_2.onnx

Then follow the steps in the Test Walking section to complete deployment
